Museum Display Case Microclimate Generator

Configuration Overview

Positive-Pressure Humidity Control supplies conditioned and purified air to wall cases, flat cases, freestanding cases, central cases, niche cases and large showcases that require continuous humidity regulation and clean airflow.

Dehumidification, humidification, purification and sterilization are configured around case volume, airtightness and project requirements. The range covers 2 m³ to 2,000 m³ and supports single cases or linked multi-case systems.

Key Functions

Positive-Pressure Humidity Control

Conditioned air is supplied under positive pressure. Depending on model, dehumidification uses a positive-pressure system or vapor-pressure balancing, combined with wet-media humidification.

Air Purification

Integrated or external purification can target formic acid, acetic acid, formaldehyde, VOCs and microorganisms.

Continuous Clean Airflow

Continuous airflow removes off-gassing from objects and reduces ingress of external pollutants.

Multi-Showcase Control

Large systems can serve one or multiple linked showcases, with independent humidity control where configured.

Remote Monitoring

Wireless monitoring, real-time data storage and touchscreen control are available for large systems.

Application Range

Wall display cases
Flat, freestanding, central and niche cases
Large display cases and linked multi-case systems
Collection-store cabinets
Luxury collection cabinets and compact premium collection spaces

Model Range

Model	Applicable Volume	Air Purification Function	Dehumidification Method	Humidification Method	Construction and Materials
SAMJS-S2	2 m³	Integrated air purification function	Positive-pressure system dehumidification	Wet-media humidification	Ultra-slim design; stainless-steel construction
SAMJS-S5	5 m³	Supports connection to an external air purification system	Water-vapor pressure equalization dehumidification	Wet-media humidification	Ultraviolet sterilization; stainless steel; fire-resistant PPS material
SAMJS-S20	20 m³	Integrated air purification function	Positive-pressure system dehumidification	Wet-media humidification	Ultra-slim design; stainless-steel construction
SAMJS-S200	200 m³	Integrated air purification function	Positive-pressure system dehumidification	Wet-media humidification	Stainless steel; multiple display cases can be connected in series
SAMJS-S2000	2000 m³	Integrated air purification function	Positive-pressure system dehumidification	Wet-media humidification	Stainless steel; multiple display cases can be connected in series, with independent humidity control for each display case
SAJS-S200	Control system for large display cases in the 200 m³ class	According to system configuration	Positive-pressure control	Wet-media humidification	Large main-unit construction

Large-System Performance

Parameter	Specification
Humidity-control range	30%～70%RH
Relative-humidity accuracy	≤±3%RH
Operating temperature	5℃～40℃
Operating humidity	10%RH～90%RH
Overall noise	<50 dB
Purification targets	Formic acid, acetic acid, formaldehyde, VOCs and microorganisms
Purification efficiency	≥50% within 1 hour
Control volumes	2, 5, 20, 200 and 2,000 m³

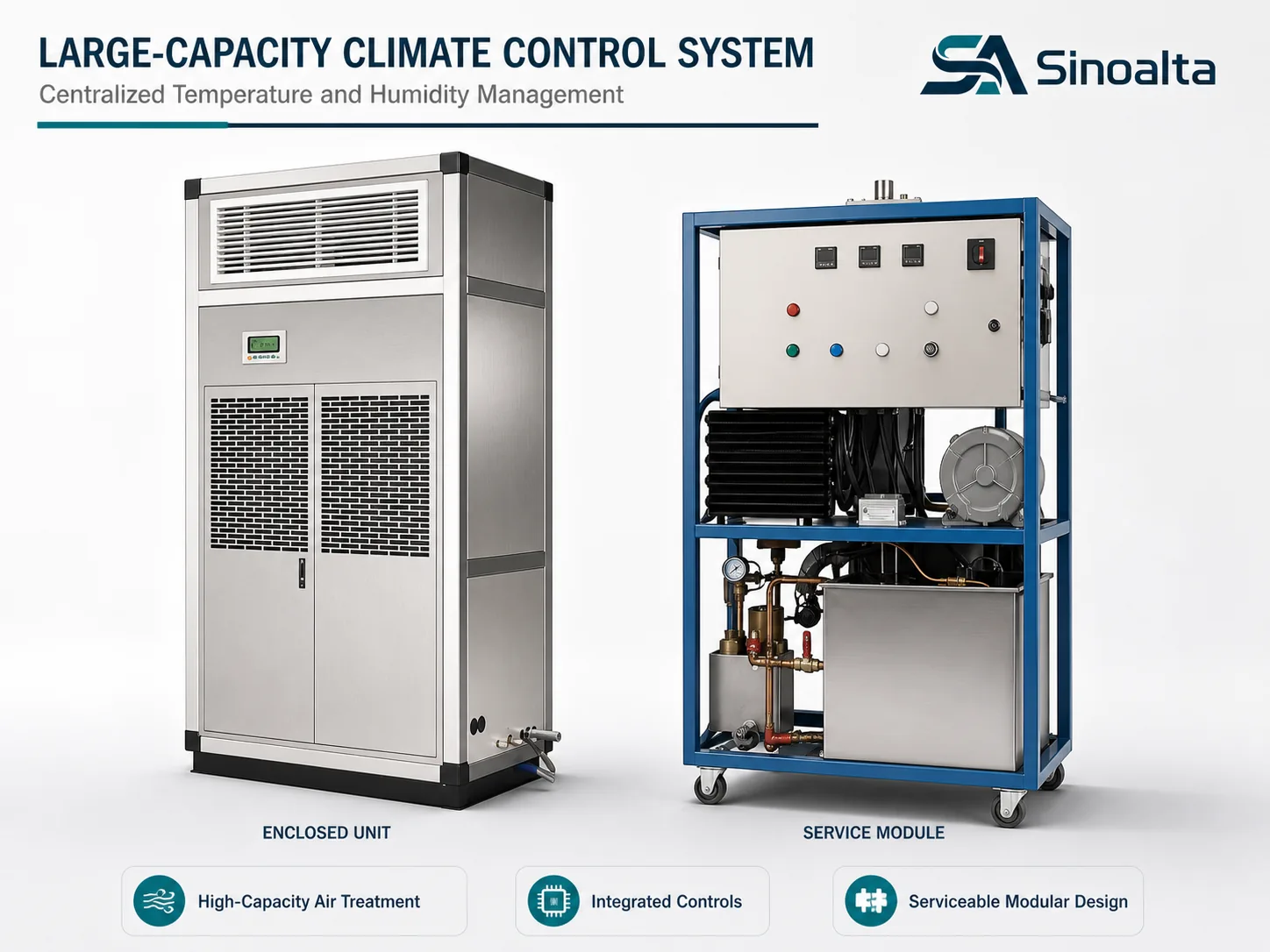

SAJS-S200 Main Unit

Parameter	Specification
Main-unit dimensions	W900×D600×H1600 mm
Weight	<180 kg with empty tank; <250 kg with full tank
Power supply	220 V, 30 A
Water route & filtration	Floor drain; built-in 3 mm softened-water tube; activated-carbon and reverse-osmosis filtration
Operating temperature	15℃～32℃
Operating humidity	35%～75%RH; control accuracy ±2%RH
Air supply	30 CFM / 50 m³/h, adjustable
Applicable display case	One display case of approximately 200 m³ at airtightness 0.3
Accessories	Wireless monitoring, real-time data storage and touchscreen control

System Features

Continuous, gentle humidity control without abrupt change
Positive-pressure filtration reduces pollutant ingress
Remote main-unit installation for large cases
Multi-level linked control and monitoring
Optional purification, sterilization, wireless monitoring and real-time data storage

Selection Guidance

SAMJS-S2, SAMJS-S5 and SAMJS-S20 for 2 m³, 5 m³ and 20 m³ applications
SAMJS-S200 or SAJS-S200 for approximately 200 m³
SAMJS-S2000 for approximately 2,000 m³ or linked multi-case systems

Configuration Overview

Internal-Circulation Humidity Control is intended for small and medium freestanding display cases up to 12 m³. A fan draws case air through the main unit, sensors measure humidity, and conditioned air returns to the case in a continuous loop.

Working Principle

The aerodynamic fan draws showcase air into the unit. Temperature and humidity sensors send measurements to the controller, which regulates the internal air humidity before returning the treated air to the showcase.

Key Functions

Continuous Humidity Control

Provides uninterrupted, gentle control without abrupt change, within a 1% set range.

Internal Air Circulation

Continuous circulation removes gases released by collection objects.

Compact Installation

The compact main unit can be installed at the bottom or top of the showcase.

Wireless Monitoring & Data Storage

Two-way wireless monitoring and data storage support environment management.

Positive-Pressure & Filtration Options

A check valve supports positive-pressure operation; air filtration can be configured.

External Device Control

Control outlets support automatic water supply and external humidification or dehumidification devices.

Models

Model	Configuration	Applicable space
SAJS-S2	Air-cooled, water-fed internal-circulation humidity control	Project-selected within ≤12 m³
SAJS-S8	Air-cooled, water-fed internal-circulation humidity control	Project-selected within ≤12 m³
SAJS-S12	Air-cooled, water-fed internal-circulation humidity control	Project-selected within ≤12 m³

Technical & Functional Features

Parameter	Specification
Applicable space	≤12 m³
Humidity-control method	Internal-circulation humidity regulation
Humidity stability	Within a 1% set range
Air circulation	Continuous internal circulation
Installation	Bottom or top of display case
Monitoring	Two-way wireless monitoring
Data management	Data storage
Positive-pressure operation	Supported
Air filtration	Configurable
External-device control	Automatic water supply and external humidification/dehumidification
System structure	All-semiconductor design
Operating characteristics	Reliable, low-maintenance, multi-level control and monitoring

Suitable Applications

Small and medium freestanding cases
Flat, central and niche cases
Other museum display microenvironments up to 12 m³

System Features

All-semiconductor design
Two-way wireless monitoring and data storage
Positive-pressure operation and optional filtration
Automatic water supply and external humidifier/dehumidifier control

Selection Guidance

Select SAJS-S2, SAJS-S8 or SAJS-S12 according to case volume and project requirements
Choose Positive-Pressure Humidity Control for large linked systems
Choose Temperature & Humidity Control when both variables require active control

Configuration Overview

Temperature & Humidity Control actively regulates both variables for museum showcases and compact collection microenvironments. Treated air is supplied under micro-positive pressure, integrating dehumidification, humidification, cooling, heating, purification and sterilization.

Key Functions

Active Temperature Control

A compressor system provides active cooling and heating.

Active Humidity Control

Dehumidification and humidification work with temperature control to maintain the target environment.

Micro-Positive-Pressure Air Supply

Conditioned air is supplied under micro-positive pressure.

Air Purification & Sterilization

Activated-carbon filtration supports air purification and sterilization.

Gas Monitoring

Optional monitoring covers formaldehyde, TVOC, CO₂, PM2.5 and PM10.

Remote Control

Optional RS485, Wi-Fi and mobile-app management are available.

Models & Capacity

Applicable space	Model	Dimensions (L×W×H, mm)	Weight (kg)	Power (W)	Noise dB(A)
≤1 m³	SA-W61	500×480×251	30	350	36
≤3 m³	SA-W63	680×480×270	35	800	38
≤5 m³	SA-W65	690×485×280	38	1080	40
≤7 m³	SA-W67	743×530×316	48	1600	42

Technical Specifications

Parameter	Specification
Power supply	220 V / 50 Hz
Standard collection-environment temperature range	16℃～28℃, ±2°C
Standard collection-environment humidity range	40%～80%RH, ±5%RH
Drainage	Automatic
Air supply	Micro-positive pressure
Purification	Activated-carbon adsorption filter

System Features

Integrated system without an external unit
High-precision PLC control
Fault self-diagnosis, overload protection and automatic restart after power loss
Continuous-operation design

Suitable Applications

Freestanding, central, flat and niche cases
Collection-store and luxury collection cabinets
Compact premium collection rooms
Other displays requiring simultaneous temperature and humidity control

Selection Guidance

SA-W61 for ≤1 m³
SA-W63 for ≤3 m³
SA-W65 for ≤5 m³
SA-W67 for ≤7 m³
Configure gas monitoring and remote-control interfaces when required
