Product Positioning

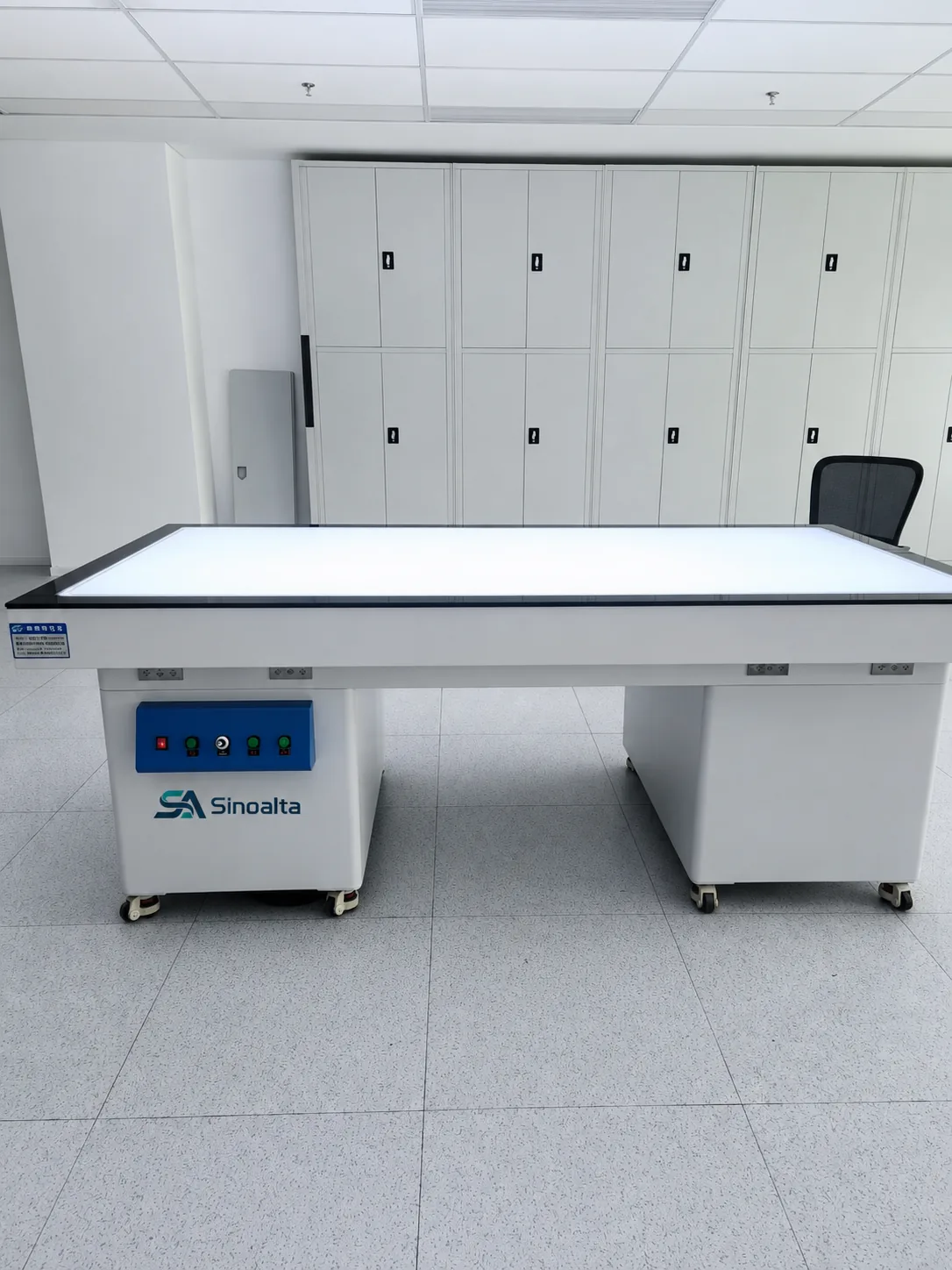

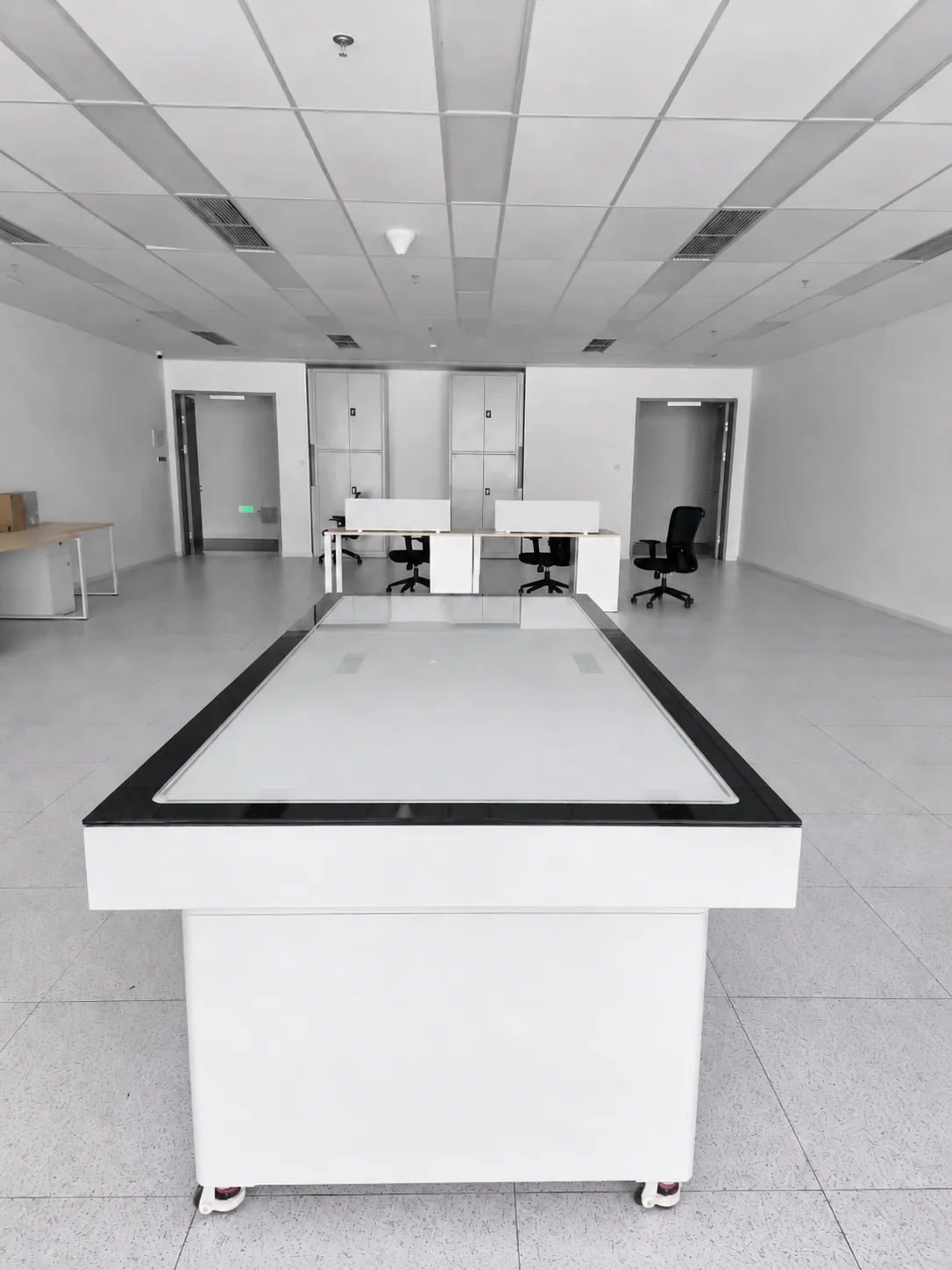

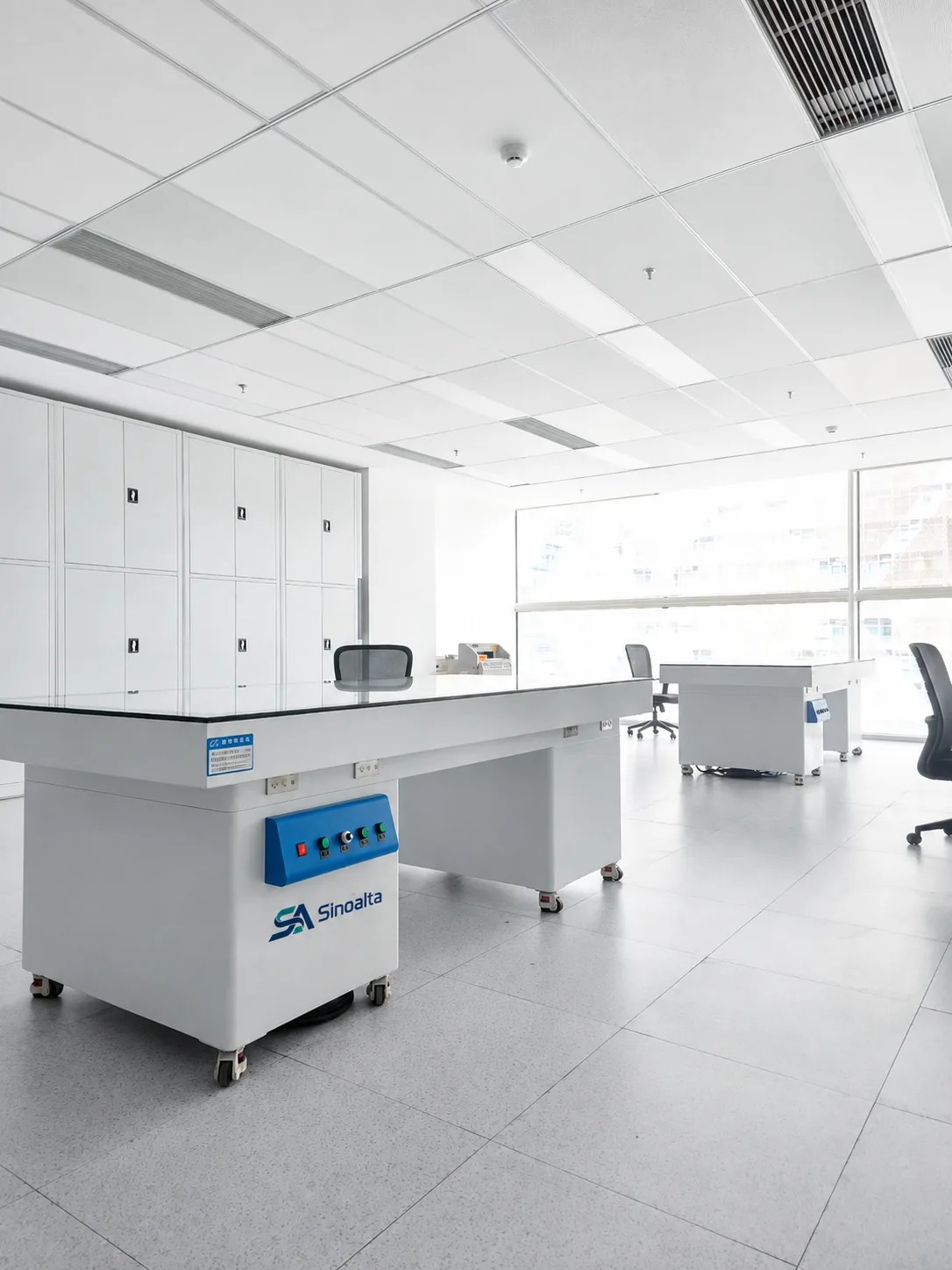

The Paper Conservation Light Table is a transmitted-light worktable for paper and cultural heritage conservation. It supports close observation of paper structure, tears, losses, joins and alignment during hands-on treatment.
Product Overview
The illuminated work surface provides even light through paper-based materials so conservators can identify damage, align fragments, trace shapes and carry out infill and mending work with greater visual control.
Its modular configuration can be adapted to the object, treatment workflow, room dimensions and operator requirements in a conservation laboratory.
Conservation Functions
Transmitted-Light Observation
Even illumination supports inspection of fibres, tears, losses, joins, watermarks and other structural details.
Tracing & Alignment
The illuminated surface helps align fragments, overlays, tracings, manuscripts, paintings and calligraphy.
Infill & Mending Work
Clear visibility through the sheet supports positioning of repair tissues, infills and joins during treatment.
Adjustable Illumination
Stepless dimming allows the light level to be adapted to the material and conservation task.
Stable Work Surface
The glass work surface provides a flat, cleanable area for examination and treatment.
Standard Light Table Configuration
| Item | Specification / configuration |
|---|---|
| Dimensional customization | Supported |
| Storage cabinet | Configurable |
| Working height | Fixed or adjustable configuration |
| Transmitted-light surface | Tempered glass |
| Light source | LED diffuse cold light |
| Illumination control | Stepless dimming |
| Work-surface inclination | Fixed or tilting configuration |
| Laboratory task lighting | Optional |

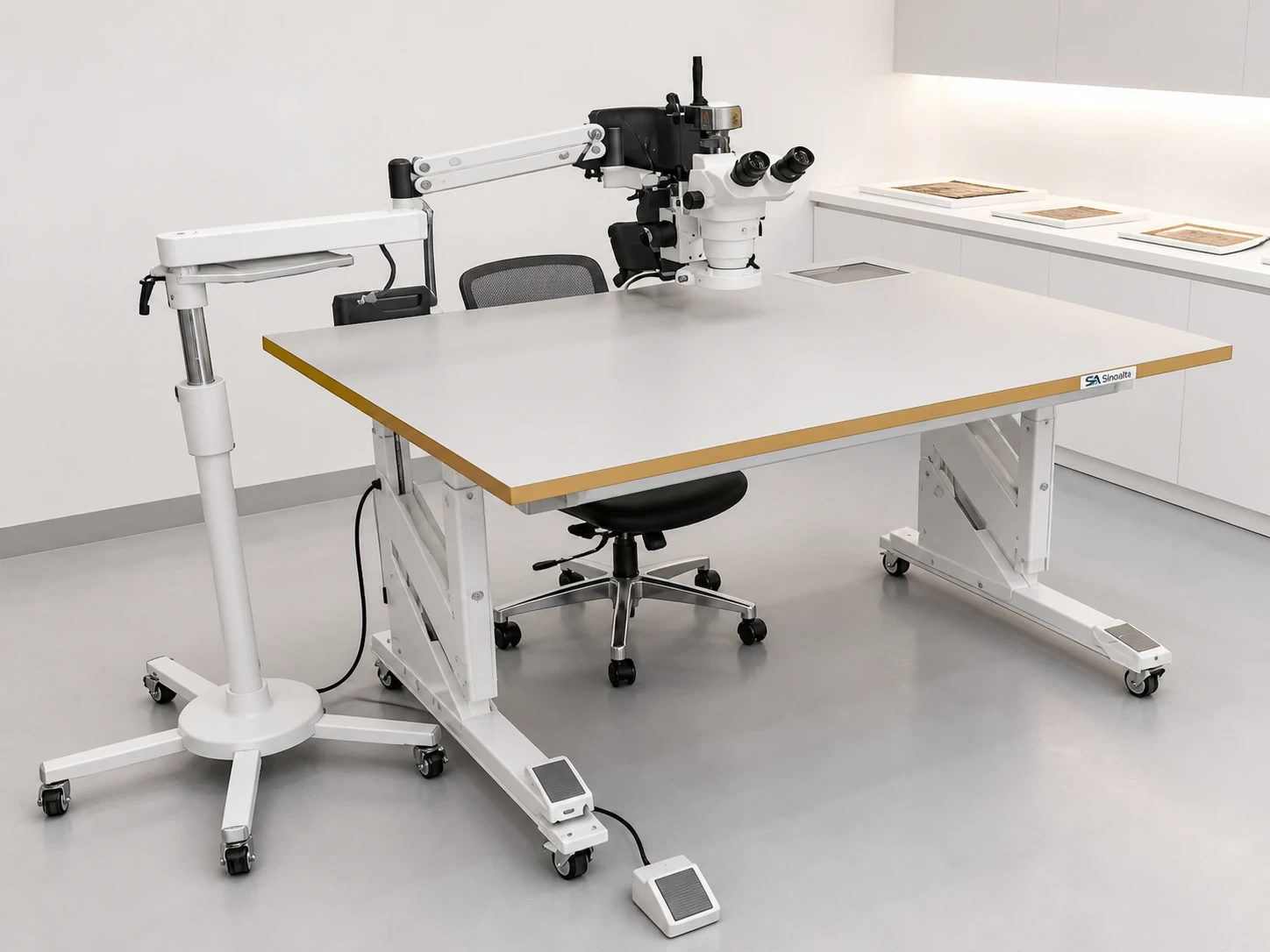

Height-Adjustable Worktable Module
The worktable can be configured with manual or powered height adjustment. A stable steel frame and adjustable working height support ergonomic observation and treatment of paper objects during extended conservation work.
Transmitted-Light Conservation Module
Application
Suitable for observation, tracing, alignment, infill, mending and mounting of archives, manuscripts, rare books, paintings, calligraphy and other paper-based cultural heritage.
Structure & Lighting
The light table uses a tempered-glass work surface with UV-printed markings and three-sided millimeter scales. A digital touch controller adjusts LED matrix-panel backlighting; the work surface is adjustable from 0° to 50°. The standard 12 V, 90 W system provides up to 3000 lux at 5500–6400 K.
Light Table Technical Specifications
| Item | Specification |
|---|---|
| Standard dimensions | 1500 × 900 × 800 mm |
| Custom size | Available; dimensions can be customized according to project requirements |
| Worktop material | Tempered glass |
| Illuminated / viewing area | 1380 × 780 mm for the standard model; customizable with table size |
| Overall height | 800 mm standard; customizable |
| Table structure materials | Tempered glass, rectangular steel tubing and E1-grade particle board |
| Work surface | Tempered glass with UV-printed markings |
| Scale markings | Millimeter scale markings on three sides |
| Worktop load capacity | ≤ 60 kg |
| Light source | LED module |
| Lighting method | Backlighting with LED matrix panel |
| LED service life | ≥ 50,000 hours |
| Brightness control | Digital touch control with adjustable brightness |
| Maximum illuminance | 3000 lux |
| Color temperature | 5500–6400 K |
| Working angle | Adjustable from 0° to 50° |
| Input voltage | 12 V |
| Power consumption | 90 W |
Materials & Structural Options
- Steel-and-wood structure
- Steel structure
- Wood structure
- Stainless-steel structure
Expandable Options
- Tilting worktop
- Tilting worktop with washing function
- Side-by-side combination
- Extended combination
- Manual height adjustment
- Powered height adjustment
- Customized worktop dimensions
- Customized transmitted-light area
- Storage cabinet
- Professional task lighting
- Magnified-observation module
Suitable Applications
- Paper conservation laboratories
- Archive and manuscript conservation
- Rare-book treatment
- Paper-document examination and mending
- Painting and calligraphy conservation
- Tracing and fragment alignment
- Tear and loss inspection
- Infill and repair-tissue placement
- Transmitted-light-assisted treatment
Customization
- Overall worktable dimensions
- Transmitted-light area
- Working height
- Manual or powered height adjustment
- Work-surface tilt angle
- Washing-function option
- Lighting and magnification options
- Storage configuration
- Steel, wood, mixed or stainless-steel structure
