Ozone Disinfection Chamber for Books & Archives

Configuration Overview

A compact enclosed configuration for small batches of books, archives and paper collections. Plasma and ozone treatment are combined with multi-stage filtration, ozone monitoring, humidity adjustment, PM2.5 display and automatic process control.

Key Functions

Plasma Purification

Ozone Disinfection

Multi-Stage Air Purification

Temperature & Humidity Monitoring

Humidity Adjustment

PM2.5 Display

PM2.

Automatic Treatment Modes

Treatment Process

The equipment performs plasma purification and ozone disinfection inside a sealed chamber while monitoring chamber temperature, humidity, and ozone concentration in real time.

A 90–120 minute treatment cycle may be selected according to the treatment protocol. Cycle duration alone does not establish a microbiological outcome; the protocol, load and release criteria require project validation.

After treatment is complete, the equipment automatically starts the ozone-reduction process.

Plasma-Ozone Chamber Performance

Item	Parameter
Treatment technology	Plasma + ozone
Source-stated ozone leakage concentration	≤0.02 mg/m³; sampling method, cycle stage and applicable safety basis require project-specific confirmation
Source-stated residual ozone concentration inside the chamber	≤0.02 mg/m³; sampling method, cycle stage and release criteria require project-specific confirmation
Temperature and humidity display	Supported
PM2.5 display	Supported
Ozone-concentration monitoring	Supported
Relative-humidity adjustment	45%～60%
Treatment cycle per batch	90–120 minutes
Source-stated mould inactivation rate	≥98%; target organism, test method, load, ozone dose, exposure conditions and verification basis require project-specific validation
Control Method	Automatic control
Treatment mode	Standard disinfection / intensive purification and microbial disinfection, etc.

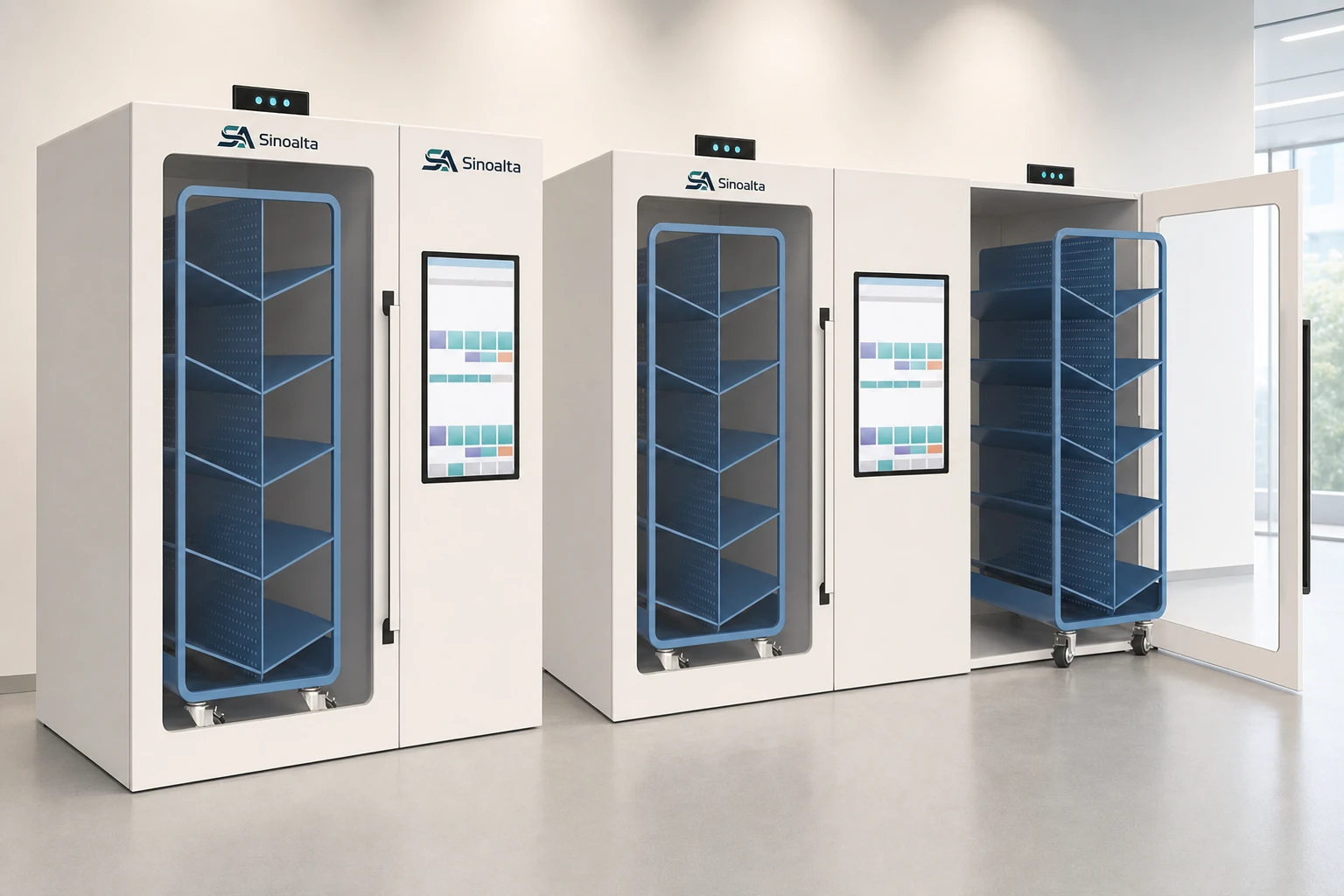

Ozone Disinfection Cabinet

The ozone disinfection cabinet for archives, documents, and books uses touchscreen control and one-touch start, and can automatically display the treatment time according to ambient temperature and humidity.

The cabinet surface has an antistatic powder-coated finish.

A push-type disinfection trolley can be installed inside the equipment; two trolleys can be provided for alternating use according to project requirements.

The system uses a moisture-resistant power supply with multiple protection functions and can switch between automatic and manual modes.

After disinfection is complete, the equipment automatically starts the ozone-reduction unit.

A traditional Chinese herbal fumigation tray can be installed inside. The fumigation temperature does not exceed 45°C, and power-failure and overtemperature protection are provided.

Cabinet Structure & Control

Available configurations include:

Touchscreen control;
One-touch start;
Automatic mode;
Manual mode;
Push-type disinfection trolley;
Swivel casters;
LED lighting;
Automatic access control;
Full-color LED text display;
Mobile-phone text editing;
Traditional Chinese herbal fumigation tray;
Ozone-reduction unit.

SAXD-C Series

Item	Single chamber	Double chamber
Overall Dimensions (mm)	W1600 × D1600 × H1950	W2600 × D1600 × H1950
Model	SAXD-1C	SAXD-2C
Treatment Capacity	A4 size, 4 cm thick, 400 volumes	A4 size, 4 cm thick, 800 volumes
Power Supply	220 V / 50 Hz	220 V / 50 Hz
Power	1500 W	2800 W
Communication Interface	RS485	RS485

Suitable Collections

Suitable for:

Archival documents;
Books and library materials;
Paper documents;
Archives and books unsuitable for high-temperature disinfection;
Paper materials requiring ozone treatment, plasma micro-purification, and temperature and humidity adjustment.

Customization

Customization according to project requirements includes:

Single or double chamber;
Cabinet dimensions;
Treatment capacity;
Number of trolleys;
Touchscreen size;
LED text display;
Access control;
Ozone monitoring;
Temperature and humidity adjustment;
PM2.5 display;
Traditional Chinese herbal fumigation function.

Configuration Overview

A high-capacity integrated configuration combining a plasma-ozone treatment chamber with an intelligent plasma de-dusting chamber. It supports trolley loading, centralized environmental monitoring, batch data storage and multiple dust-removal and treatment stages.

System Composition

Plasma-Ozone Disinfection Chamber
Intelligent Plasma De-Dusting Chamber

Working Principle

Plasma-treated air enters the equipment compartment through a fan, then enters the disinfection chamber through dual-loop convection ducts.

The chamber air first undergoes dust removal and bacterial inactivation while providing clean air to the ozone generator.

The ozone generator produces high-concentration ozone gas, which treats mold and microorganisms in archival files and objects under plasma catalysis.

The combination of plasma, ozone, filtration, and air circulation provides archive purification and disinfection.

Key Functions

Plasma Purification

Ozone Disinfection

De-Dusting

Environmental Monitoring

Data Storage & Backup

Temperature & Humidity Balance

Plasma-Ozone Disinfection Chamber Models

SA-1D
SA-2D
SA-4D

Item	Parameter
Model	SA-1D
Processing capacity	Approximately 600 archival rolls
Number of trolleys	4
Chamber volume	Approximately 8 m³
Operating Interface	Computer interface
Automatic data storage	Supported
Back-end data backup	Supported

Item	Parameter
Rated Power	800 VA
Overall Dimensions	2800 × 2600 × 2400 mm (single chamber)
Power Supply	220 V、50 Hz
Ozone Concentration	0–180 mg/m³
Noise Level	＜55dB(A)
Treatment Time	30～150 minutes, adjustable
Source-stated environmental ozone leakage	＜0.16 mg/m³; sampling method, operating state and applicable safety basis require project-specific confirmation
Main Unit Service Life	>10,000 hours
Real-Time Display	Ozone concentration, PM2.5, VOC, temperature, and humidity
Trolley Capacity	One chamber accommodates 8 mobile disinfection trolleys simultaneously
Installation Method	Designed and installed according to on-site space measurements

Item	Parameter
Model	SA-4D
Processing capacity	Approximately 2,400 archival rolls
Number of trolleys	16
Chamber volume	Approximately 15 m³
Operating Interface	Computer interface
Automatic data storage	Supported
Back-end data backup	Supported

Intelligent Plasma De-Dusting Chamber

Structure & Equipment

De-Dusting Chamber Specifications

Item	Parameter
Voltage	220 V±10%
Power	≤5 kW
Source-stated filtration efficiency	≥99.5%; particle size, test method, airflow and filter condition require project-specific confirmation
HEPA Filtration	Can remove ≥99% of airborne particles 0.3 μm and larger
Dust-Removal and Purification Time	0.5–1000 hours; settable according to archive materials
Operating Noise	≤60 dB(A)

System Features

Coordinated plasma purification and ozone disinfection;
Multiple combined stages of electrostatic treatment, activated carbon, plasma photocatalysis, and high-efficiency filtration;
Simultaneous dust removal, pest control, sterilization, and temperature-humidity balancing;
Computer control and recording throughout the treatment process;
Display of temperature, humidity, ozone concentration, suspended particulates, and VOC;
Automatic storage and back-end data backup;
Customization according to site space and treatment capacity;
Batch loading with mobile trolleys.

Technical Highlights

Item	Parameter / Description
Sealing class	GB/T Class 8
Processing capacity	600–5,000 archival rolls/hour
Operating Interface	One-touch operation
Process control	Computer control and recording throughout the entire process
Environmental display	Temperature, humidity, ozone concentration, suspended particulates, and VOC
Data management	Automatic storage and back-end backup

Suitable Applications

Suitable for:

Archives;
Libraries;
High-volume archive treatment;
Centralized purification of paper documents;
Collection materials requiring combined dust-removal and disinfection treatment;
Treatment projects requiring trolley-based batch loading;
Professional treatment spaces requiring environmental monitoring and back-end data management.

Customization

Customization according to project requirements includes:

Single or multiple chambers;
Chamber dimensions;
Treatment capacity;
Number of trolleys;
Plasma-ozone disinfection module;
Intelligent dust-removal module;
One equipment compartment controlling one or multiple dust-removal rooms;
21-inch operating display;
LED display;
Video monitoring;
Environmental monitoring;
Back-end data backup;
Design and installation based on site-space measurements.

Configuration Overview

A room-scale ozone-circulation configuration for batch treatment of archives, books and related collections. Forced low-velocity circulation distributes ozone through the chamber while concentration, airflow, relative humidity, cycle timing, door safety and tail-gas decomposition are automatically controlled.

Working Principle

The system uses forced low-velocity airflow equipment to inject ozone gas into a sealed treatment chamber and maintain continuous internal ozone circulation and convection.

The circulating airflow promotes ozone diffusion and penetration among archival files, books, and other collection materials, allowing the treatment gas to reach different positions and small spaces.

When the chamber ozone concentration reaches the set upper limit, the ozone generator stops producing ozone and the chamber concentration is maintained within the set range for continued treatment.

After treatment, the system decomposes and reduces the remaining ozone through circulation decomposition and the ozone-reduction unit.

Key Functions

Ozone Circulation Disinfection

Ozone Concentration Control

Ozone Decomposition

Automatic Humidification

PLC Automatic Control

UV Sterilization Assistance

Mobile Trolley Loading

Automatic Door Lock

Optional Remote Control

Treatment Capacity & Process

Operation Sequence

Chamber Structure

The treatment-chamber interior is made of SUS304 stainless-steel sheet. Surfaces in contact with treated objects are polished for ease of cleaning.

The system includes:

SUS304 stainless-steel treatment space;
Low-noise circulation fan;
Ozone generator;
Automatic humidification system;
Ultraviolet germicidal lamp;
Catalytic ozone-tail-gas treatment;
Ozone-reduction unit;
Automatic door lock;
Automatic lighting;
Mobile stainless-steel trolley;
7-inch touchscreen PLC control system.

Control & Safety

Automatic Control
Negative-Pressure Protection
Ozone Tail-Gas Treatment
Fault Alarm
Door Safety

Treatment Performance

Item	Specification
Primary treatment method	Ozone circulation and convection
Treatment time per batch	Approximately 60 minutes
Load capacity per batch	Approximately 1,000–10,000 or more archival volumes, configured according to chamber size
Source-stated residual ozone concentration	＜0.16 mg/m³; sampling method, cycle stage and release criteria require project-specific confirmation
Relative-humidity adjustment	45%～65%
Source-stated mean logarithmic reduction value for mould	≥1; target organism, test method, load and exposure conditions require project-specific validation
Source-stated mean logarithmic reduction value for Escherichia coli	≥3; strain, test method, load and exposure conditions require project-specific validation
Source-stated mean logarithmic reduction value for Staphylococcus aureus	≥3; strain, test method, load and exposure conditions require project-specific validation
Control Method	PLC automatic control
Operator interface	7-inch touchscreen
Communication interface	RS485
Mobile loading	Stainless-steel mobile trolley

Paper Treatment Test

Test item	Result
Test papers	Newsprint, copy paper, Xuan paper, and printed-paper stock
Source-described intensive treatment test	20 cycles; protocol, sample conditioning and independent verification are not stated in the page source
Source-described tensile-strength result	No significant difference reported; test method, sample size and statistical basis require confirmation
Source-described tear-resistance result	No significant difference reported; test method, sample size and statistical basis require confirmation
Text density	Observable change
Fading index	Observable change

SAXD-F Series Models

Model	Capacity	Overall dimensions： × × （mm）	Internal dimensions： × × （mm）	Power supply	Rated power	Ozone output
SAXD-F4m³	4 m³	2060×1040×2000	1500×940×1800	220 V / 50 Hz	1.2 kW	20 g/h
SAXD-F5m³	5 m³	2060×1240×2000	1500×1150×1800	220 V / 50 Hz	1.2 kW	20 g/h
SAXD-F10m³	10 m³	3800×1400×2000	3000×1200×1800	220 V / 50 Hz	2.5 kW	40 g/h
SAXD-F20m³	20 m³	3800 × 2700 × 2000	3000 × 2500 × 1800	220 V / 50 Hz	3.5 kW	80 g/h
SAXD-F50m³	50 m³	5000 × 5000 × 2000	4200 × 4800 × 1800	220 V / 50 Hz	5.5 kW	200 g/h

Suitable Collections & Applications

Suitable for:

Archival documents;
Books and library materials;
Rare books;
Cultural-heritage objects;
Paper documents;
Museum collection materials;
Batch disinfection treatment in archives;
Library collection treatment;
Cultural-heritage conservation treatment spaces;
Professional institutions requiring high-volume sealed ozone treatment.

Customization

Customization according to project requirements includes:

Chamber volume;
External dimensions;
Internal dimensions;
Number of mobile trolleys;
Treatment capacity per batch;
Ozone-generation output;
Treatment mode;
Relative-humidity control;
PLC control system;
Remote control;
RS485 communication;
Site installation conditions.
